Village of Radio Frequency!

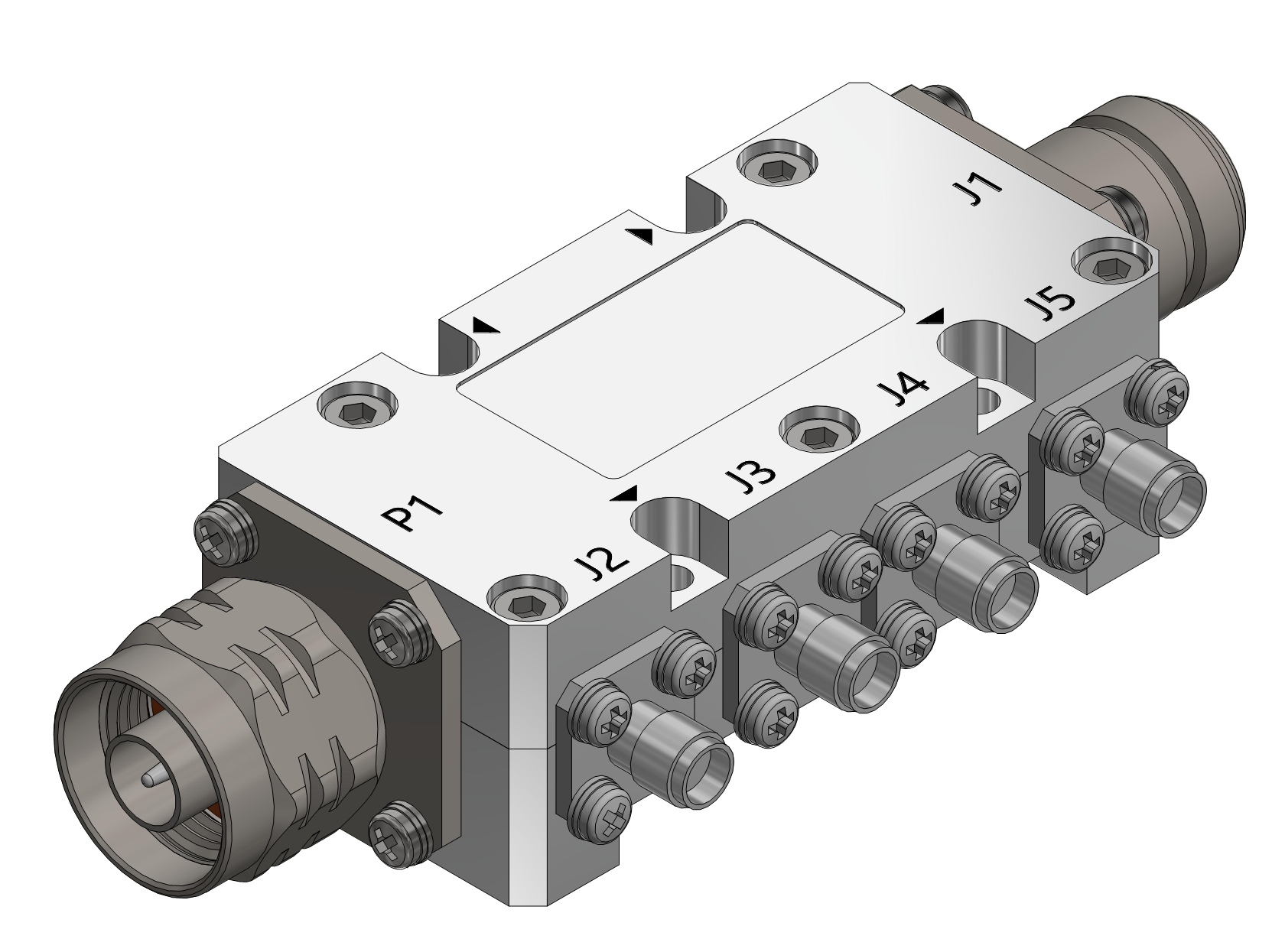

Plused Power Detector
Pulse Power Detect ;
RF Pulse Repetition Rate 1~100Hz,
Pulse Width 1~10usec
Plused AFC(Automatic Frequency Control)
Auto/ Manual Switch ;
AFC Auto operation/ AFC Manual operation

Pulse Power Detect ;
RF Pulse Repetition Rate 1~300Hz,
Pulse Width 4~13usec
WLAN-BDA530
10dB cable loss compensation
TDD bidirectional amplifier
Down link signal triggered TDD switching
1uS rising/falling time
Low receive noise figure
Output mismatch protection Isolator
GaAsFET design
MCPA 6016
2150 ~ 2170MHz frequency range.
Average  output power  42dBm.
ACLR@42dBm Pout : 53dB@Fc ?10MHz
Operating Temperature -30 ~ 55?C
WLAN-BDA236
10dB cable loss compensation
TDD bidirectional amplifier
Down link signal triggered TDD switching
1uS rising/falling time
Low receive noise figure
Output mismatch protection Isolator
GaAsFET design
Frequency Synthesizer for Instrument(FHSZ-4080)
4~8GHz frequency sweep generator
1Hz resolution
Low phase noise
Fast switching time
Internal & external 10MHz reference
Multi loop PLL/DDS hybrid design
YIG based main oscillator
3wire serial data interface
2wire trigger handshake
Pulsed Power Amplifier(09G10-50)
9.7~10GHz frequency range
50W pulsed output power
25KHz(40uS period)/1.2% duty cycle pulsed operation
200nS pulse delay
20nS rising/falling time
-167dBm/Hz output noise @ pulse off state
90° hybrid combined GaAsFET design
S-BAND LNA
Input Frequency range 2.8GHz
Output Frequency range 2.8GHz
High Power Amp(AMCPA6016K)
1840 ~ 1860MHz frequency range
Average output power 42dBm
BW 20MHz
Analog Predistortion
High Power Amp(MCPA6016 APD)
2150 ~ 2170MHz frequency range
Average output power 42dBm
BW 20MHz
Analog Predistortion
CWPA 1100(CDMA) 100W
869 ~ 896 MHz frequency range
Average output power 50dBm 100W
BW 30MHz
CWPA 2100(DCS1800)
1805 ~ 1880MHz frequency range
Average output power 50dBm 100W
BW 75MHz
CWPA6100(WCDMA)
2110 ~ 2170MHz frequency range
Average output power 50dBm 100W
BW 60MHz
CWPA2200(PCS)
1860 ~ 1880MHz frequency range.
Average  output power  53dBm. 200W
HPAM
L-Band TDD HPA
Average  output power  41dBm
Spurious  <-60dBc
TDD switching time  <5us
Operation Temperature  -20℃ ∼ +60℃
Low Noise Amplifier(LNA.2)
1000 ~ 3000 MHz frequency range
Gain : 16±1.25dB,
Noise figure  max. 3.5dB
operating temperature -20℃~60℃
Low cost, High efficiency, Compact size
Various alarm interfaces available
Low Noise Amplifier(LNA.1)
15 ~ 1300 MHz frequency range
Gain : 15±1dB,  25±1dB (Alternative Function)
Noise figure  max. 3dB   ▶ operating temperature -20℃~60℃
Low cost, High efficiency, Compact size
Various alarm interfaces available
MCPA 2016

1840 ~ 1870MHz frequency range.
Average  output power  42dBm.

IMD & Spurious Emission(21FA@42dBmPout)
      :  42dB@Fc 885KHz / 43dB@Fc 1.98MHz
         -14.5dBm@Fc2.25MHz

Operating Temperature -30 ~ 55C
